Transmission repair diagnostic and rebuild.

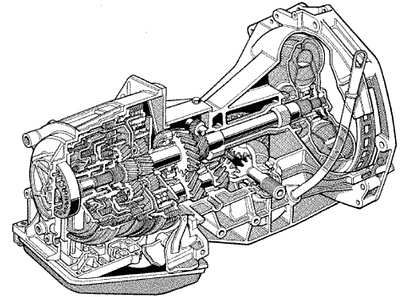

Automatic transmission MB1 MB3 MJ1 MJ3 ML1

As the automatic transmission is lubricated under pressure, lubrication only occurs if the engine is running. Consequently, the following instructions must be respected in order to avoid serious damage: – Never move the vehicle with the ignition off (when going down a slope for example), the danger of such a measure cannot be emphasised too greatly. – Never have the vehicle pushed (for example in order to reach the next service station), unless precautions taken in the “Towing” are followed). In addition, the vehicle can only be driven if the engine is running. It is therefore impossible to start the engine on a vehicle with automatic transmission by pushing the vehicle. TOWING The front of the vehicle must be raised, however, if this is impossible towing can be carried out in exceptional cases with the wheels on the ground in the following conditions: 1 – Add an additional 2 litres of oil to the automatic transmission (“Elf Renaultmatic D2” or Mobil ATF 220). 2 – When towing, do not exceed a speed of 25 mph (40 km/h) or a distance of 30 miles (50 km) maximum (lever in N). Remember to drain off the excess oil at the end of the towing operation.
Workshop manual Download pdf (276Pages / 1.8Mb)
Oil change guide, classification, grade and capacity.
1.5 DCI 2007-2011 ENGINE CODE K9K
- DEPENDING ON VEHICLE AGE , OIL GRADE (SAE) WILL VARY
- OIL CLASSIFICATION OEM
- 0W/30 – 0W/40 API/ACEA CF/B1
- 5W/30 API/ACEA CF/B1
- 5W/40 -10W/40 API/ACEA CF/B1
- ENGINE OIL CAPACITY (WITH FILTER) – 4.5 / LITRES
- TRANSMISSION OIL GRADE – 75W/80 GL-4
- MANUAL TRANSMISSION OIL CAPACITY – 2.0 / LITRES
- BRAKE FLUID – DOT 4
- BRAKE FLUID CAPACITY – 1.0 /LITRES
- AIR CONDITIONING REFRIGERANT R134A
- AIR CONDITIONING REFRIGERANT QUANTITY 450+-25 /GRAMS
1.9 DCI 2003-2007 ENGINE CODE F2K
- DEPENDING ON VEHICLE AGE , OIL GRADE (SAE) WILL VARY
- OIL CLASSIFICATION OEM
- 0W/30 – 0W/40 API/ACEA CF/B3
- 5W/30 API/ACEA CF/B3
- 5W/40 -10W/40 API/ACEA CF/B3
- ENGINE OIL CAPACITY (WITH FILTER) – 4.6 / LITRES
- TRANSMISSION OIL GRADE – 75W/80 GL-4
- AUTOMATIC TRANSMISSION OIL CAPACITY – 7.0 / LITRES
- MANUAL TRANSMISSION OIL CAPACITY – 2.1 / LITRES
- BRAKE FLUID – DOT 4
- BRAKE FLUID CAPACITY – 1.0 /LITRES
- AIR CONDITIONING REFRIGERANT R134A
- AIR CONDITIONING REFRIGERANT QUANTITY 500+-25 /GRAMS
2.0D DCI 2007-11 ENGINE CODE M9R
- DEPENDING ON VEHICLE AGE , OIL GRADE (SAE) WILL VARY
- OIL CLASSIFICATION OEM
- 0W/30 – 0W/40 API/ACEA CJ/C3
- 5W/30 API/ACEA CJ/C3
- 5W/40 -10W/40 API/ACEA CF/B3 B4 B5
- ENGINE OIL CAPACITY (WITH FILTER) – 7.4 / LITRES
- TRANSMISSION OIL GRADE – 75W/85 GL-4
- AUTOMATIC TRANSMISSION OIL CAPACITY – 2.0 / LITRES
- AUTOMATIC TRANSMISSION OIL CAPACITY – 7.5 / LITRES TYPE MATIC J ATF
- DIFFERENTIAL REAR 80W90 GL-5
- CAPACITY 0.5
- TRANSFER BOX OIL 80W90 GL-5
- CAPACITY 0.4
- BRAKE FLUID – DOT 3/4
- BRAKE FLUID CAPACITY – 1.0 /LITRES
- AIR CONDITIONING REFRIGERANT R134A
- AIR CONDITIONING REFRIGERANT QUANTITY 450 /GRAMS
2.2D DCI 2003-06 ENGINE CODE YD22DDT
- DEPENDING ON VEHICLE AGE , OIL GRADE (SAE) WILL VARY
- OIL CLASSIFICATION OEM
- 0W/30 – 0W/40 API/ACEA CF/B1 B3
- 5W/30 API/ACEA CF/B1 B3
- 5W/40 -10W/40 API/ACEA CF/B1 B3
- ENGINE OIL CAPACITY (WITH FILTER) – 5.4 / LITRES
- TRANSMISSION OIL GRADE – NISSAN XZ
- TRANSMISSION OIL CAPACITY – 4.5 – 4.8 / LITRES
- AUTOMATIC TRANSMISSION DEXRON III 7.7 /LITRES
- BRAKE FLUID – DOT 4
- BRAKE FLUID CAPACITY – 1.0 /LITRES
- AIR CONDITIONING REFRIGERANT R134A
- AIR CONDITIONING REFRIGERANT QUANTITY 500+-50 /GRAMS
2.5D DCI 2004-10 ENGINE CODE YD25DDT9I
- DEPENDING ON VEHICLE AGE , OIL GRADE (SAE) WILL VARY
- OIL CLASSIFICATION OEM
- 0W/30 – 0W/40 API/ACEA CF/B5
- 5W/30 API/ACEA CF/B5
- 5W/40 -10W/40 API/ACEA CF/B5
- ENGINE OIL CAPACITY (WITH FILTER) – 6.9 / LITRES
- TRANSMISSION OIL GRADE – 75W/85 GL-4
- MANUAL TRANSMISSION OIL CAPACITY – 4.3 / LITRES
- AUTOMATIC TRANSMISSION OIL CAPACITY – 10.3 / LITRES TYPE ATF J
- DIFFERENTIAL FRONT 80W/90 GL-5
- CAPACITY 0.85
- DIFFERENTIAL REAR 75W90 GL-5 SYNTHETIC
- CAPACITY 1.75
- TRANSFER BOX OIL DEXRON III
- CAPACITY 3.0
- BRAKE FLUID – DOT 3/4
- BRAKE FLUID CAPACITY – — /LITRES
- AIR CONDITIONING REFRIGERANT R134A
- AIR CONDITIONING REFRIGERANT QUANTITY 700 /GRAMS
