TOYOTA AUTOMATIC TRANSMISSION A340E (2JZ–GTE)

TOYOTA AUTOMATIC TRANSMISSION A540E

TOYOTA AUTOMATIC TRANSMISSION A750E

TOYOTA AUTOMATIC TRANSMISSION U341F

TOYOTA  LAND CRUISER AUTOMATIC TRANSMISSION A442F

TOYOTA AUTOMATIC TRANSMISSION A440F A440L

Oil change, grade, classification and capacity.

1.4 2007-2010

• DEPENDING ON VEHICLE  AGE , OIL GRADE (SAE) WILL VARY
• OIL CLASSIFICATION   OEM
• 0W/30 – 0W/40         ACI/ACEA  SM/A1  A3
• 5W/30                        ACI/ACEA  SM/A1  A3
•  5W/40 -10W/40      ACI/ACEA  SL/A2
• ENGINE OIL CAPACITY (WITH  FILTER)     –         4.2/ LITRES
• TRANSMISSION OIL GRADE     –    75w GL-4
• AUTOMATIC TRANSMISSION  OIL CAPACITY   –     / LITRES
• MANUAL  TRANSMISSION  OIL CAPACITY   –     1.9/LITRES
• BRAKE FLUID  –  DOT 3
• BRAKE FLUID CAPACITY  –  — /LITRES
• AIR CONDITIONING REFRIGERANT  R134A
• AIR CONDITIONING REFRIGERANT QUANTITY   440+-30 /GRAMS

1.4D D4D 2007-2009

• DEPENDING ON VEHICLE  AGE , OIL GRADE (SAE) WILL VARY
• OIL CLASSIFICATION   OEM
• 5W/30                        ACI/ACEA  CF/B1
•  5W/40 -10W/40      ACI/ACEA  CF/C2
• ENGINE OIL CAPACITY (WITH  FILTER)     –        4.3 / LITRES
• TRANSMISSION OIL GRADE     –    75W  GL-4
• AUTOMATIC TRANSMISSION FLUID TYPE ——-
• AUTOMATIC TRANSMISSION  OIL CAPACITY   –  — / LITRES
• MANUAL  TRANSMISSION  OIL CAPACITY   –     1.9/ LITRES
• BRAKE FLUID  –  DOT 4
• BRAKE FLUID CAPACITY  –  — /LITRES
• AIR CONDITIONING REFRIGERANT  R134A
• AIR CONDITIONING REFRIGERANT QUANTITY   440+-30 /GRAMS

2.0D D4D  2007-2011

• DEPENDING ON VEHICLE  AGE , OIL GRADE (SAE) WILL VARY
• OIL CLASSIFICATION  OEM
• 5W/30                        API/ACEA   CF/B1  C2
• ENGINE OIL CAPACITY (WITH  FILTER)     –         6.3 / LITRES
• TRANSMISSION OIL GRADE     –    75W  GL-4
• TRANSMISSION  OIL CAPACITY   –    2.3 / LITRES
• BRAKE FLUID  –  DOT 4
• BRAKE FLUID CAPACITY  –  –/LITRES
• AIR CONDITIONING REFRIGERANT  R134A
• AIR CONDITIONING REFRIGERANT QUANTITY   440+-30 /GRAMS

2.0  2001-2005  1AZ-FZ

• DEPENDING ON VEHICLE  AGE , OIL GRADE (SAE) WILL VARY
• OIL CLASSIFICATION  OEM
• 5W/30    5W/40    ACI/ACEA  SJ/A1  A3
•  15W/40                   ACI/ACEA  SL/A2
• ENGINE OIL CAPACITY (WITH  FILTER)     –         3.7 / LITRES
• AUTOMATIC TRANSMISSION OIL GRADE     –    ATF T-IV
• AUTOMATIC TRANSMISSION  OIL CAPACITY   –    6.2 / LITRES
• MANUAL TRANSMISSION OIL GRADE     –    75W/90 GL-4
• MANUAL TRANSMISSION  OIL CAPACITY   –    2.5 / LITRES
• BRAKE FLUID  –  DOT 3
• BRAKE FLUID CAPACITY  –  –/LITRES
• AIR CONDITIONING REFRIGERANT  R134A
• AIR CONDITIONING REFRIGERANT QUANTITY   — /GRAMS

2.4  2001-2005

• DEPENDING ON VEHICLE  AGE , OIL GRADE (SAE) WILL VARY
• OIL CLASSIFICATION  OEM
• 5W/30    5W/40    ACI/ACEA  SJ/A1  A3
•  15W/40                   ACI/ACEA  SL/A2
• ENGINE OIL CAPACITY (WITH  FILTER)     –         4.3 / LITRES
• AUTOMATIC TRANSMISSION OIL GRADE     –    ATF T-IV
• AUTOMATIC TRANSMISSION  OIL CAPACITY   –    6.2 / LITRES
• MANUAL TRANSMISSION OIL GRADE     –    75W/90 GL-4
• MANUAL TRANSMISSION  OIL CAPACITY   –    2.5 / LITRES
• BRAKE FLUID  –  DOT 3
• BRAKE FLUID CAPACITY  –  –/LITRES
• AIR CONDITIONING REFRIGERANT  R134A
• AIR CONDITIONING REFRIGERANT QUANTITY   — /GRAMS

3.0  2005  1MZ-FE

• DEPENDING ON VEHICLE  AGE , OIL GRADE (SAE) WILL VARY
• OIL CLASSIFICATION  OEM
• 5W/30    5W/40    ACI/ACEA  SJ/A1  A3
•  15W/40                   ACI/ACEA  SL/A2
• ENGINE OIL CAPACITY (WITH  FILTER)     –         4.7 / LITRES
• AUTOMATIC TRANSMISSION OIL GRADE     –    ATF T-IV
• AUTOMATIC TRANSMISSION  OIL CAPACITY   –    6.5 / LITRES
• MANUAL TRANSMISSION OIL GRADE     –    75W/90 GL-4
• MANUAL TRANSMISSION  OIL CAPACITY   –    2.5 / LITRES
• BRAKE FLUID  –  DOT 3
• BRAKE FLUID CAPACITY  –  –/LITRES
• AIR CONDITIONING REFRIGERANT  R134A
• AIR CONDITIONING REFRIGERANT QUANTITY   — /GRAMS

2.2  D4D  2006-2009   2AD-FHV

• DEPENDING ON VEHICLE  AGE , OIL GRADE (SAE) WILL VARY
• OIL CLASSIFICATION  OEM
• 5W/30                        ACI/ACEA  SF/  B1  B3
• ENGINE OIL CAPACITY (WITH  FILTER)     –        5.9 / LITRES
• TRANSMISSION OIL GRADE     –   75W SEMI SYNTHETIC GL-4
• AUTOMATIC TRANSMISSION  OIL CAPACITY   –    — / LITRES
• MANUAL  TRANSMISSION  OIL CAPACITY   –     2.1/ LITRES
• BRAKE FLUID  –  DOT 4
• BRAKE FLUID CAPACITY  –  — /LITRES
• AIR CONDITIONING REFRIGERANT  R134A
• AIR CONDITIONING REFRIGERANT QUANTITY   430+-30 /GRAMS

4.5D V8 D4D 2008-2011

• DEPENDING ON VEHICLE  AGE , OIL GRADE (SAE) WILL VARY
• OIL CLASSIFICATION  OEM
• 5W/30                        ACI/ACEA  SF/B1
•  5W/40 -10W/40    ACI/ACEA  SF/B1
• ENGINE OIL CAPACITY (WITH  FILTER)     –        9.0 / LITRES
• TRANSMISSION OIL GRADE     –    MANUAL 75W90 GL-4/5       AUTOMATIC  ATF WS
• MANUAL  TRANSMISSION  OIL CAPACITY   –     3.0 / LITRES
• AUTOMATIC  TRANSMISSION  OIL CAPACITY   –     3.0 / LITRES
• DIFFERENTIAL FRONT/AT   1.9/LITRES   GL-5  W75/80
• DIFFERENTIAL REAR   4.2/LITRES   GL-5  W75/80
• TRANSFER BOX   1.5/LITRES   GL-5  W75/80
• BRAKE FLUID  –  DOT 3
• BRAKE FLUID CAPACITY  –  — /LITRES
• AIR CONDITIONING REFRIGERANT  R134A
• AIR CONDITIONING REFRIGERANT QUANTITY   — /GRAMS

4.7 V8 2008-2011

• DEPENDING ON VEHICLE  AGE , OIL GRADE (SAE) WILL VARY
• OIL CLASSIFICATION  OEM
• 5W/30                        ACI/ACEA  SL/A3
•  5W/40 -10W/40    ACI/ACEA  SL/A3
• ENGINE OIL CAPACITY (WITH  FILTER)     –       6.2 / LITRES
• TRANSMISSION OIL GRADE     –          AUTOMATIC  AFF WS
• AUTOMATIC  TRANSMISSION  OIL CAPACITY   –     3.2 / LITRES
• DIFFERENTIAL FRONT/AT   1.9/LITRES   GL-5  W75/85
• DIFFERENTIAL REAR   4.2/LITRES   GL-5  W75/85
• TRANSFER BOX   1.5/LITRES   GL-5  W75/90
• BRAKE FLUID  –  DOT 3
• BRAKE FLUID CAPACITY  –  — /LITRES
• AIR CONDITIONING REFRIGERANT  R134A
• AIR CONDITIONING REFRIGERANT QUANTITY   — /GRAMS

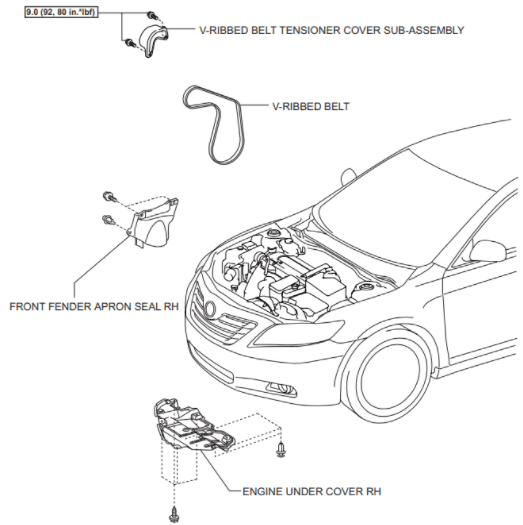

CAMERY HYBRID 2007

ENGINE MECHANICAL

DRIVE BELT

REMOVAL
1. REMOVE FRONT WHEEL RH
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE FRONT FENDER APRON SEAL RH
4. REMOVE V-RIBBED BELT TENSIONER COVER SUBASSEMBLY
(a) Remove the 2 bolts and V-ribbed belt tensioner
cover.

5. REMOVE V-RIBBED BELT
(a) Loosen the V-ribbed belt tensioner counterclockwise, then remove the V-ribbed belt.
NOTICE:
• Be sure to connect the tools so that they are in line during use.
• When retracting the tensioner, turn it
clockwise slowly. Do not apply force rapidly.
• After the tensioner is fully retracted, do not
apply force more than necessary.

INSPECTION
1. INSPECT V-RIBBED BELT
(a) Visually check the V-ribbed belt for excessive wear, frayed cords, etc. If any defect has been found, replace the V-ribbed belt.
HINT:
• Cracks on the rib side of a belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.
• A "new belt" is a belt which has been used for less than 5 minutes with the engine running.
• A "used belt" is a belt which has been used for 5 minutes or more with the engine running.

INSTALLATION
1. INSTALL V-RIBBED BELT
(a) Loosen the V-ribbed belt tensioner arm counterclockwise, then install the V-ribbed belt.
(b) If it is difficult to install the V-ribbed belt, perform the following procedure:
(1) Put the V-ribbed belt on every pulley except the tensioner pulley as shown in the illustration.
(2) While releasing the belt tension by turning the belt tensioner counterclockwise, put the Vribbed belt on the tensioner pulley.
NOTICE:

• Be sure to connect the tools so that they are in line during use.
• When retracting the tensioner, turn it clockwise slowly. Do not apply force rapidly.
• After the tensioner is fully retracted, do not apply force more than necessary.
(3) After installing the V-ribbed belt, check that it fits properly in the ribbed grooves. Check to confirm that the belt has not slipped out of the grooves on the bottom of the crank pulley by hand.
2. INSTALL V-RIBBED BELT TENSIONER COVER SUBASSEMBLY
(a) Install the V-ribbed belt tensioner cover with the 2 bolts.
Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
3. INSTALL FRONT FENDER APRON SEAL RH
4. INSTALL ENGINE UNDER COVER RH
5. INSTALL FRONT WHEEL RH
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
